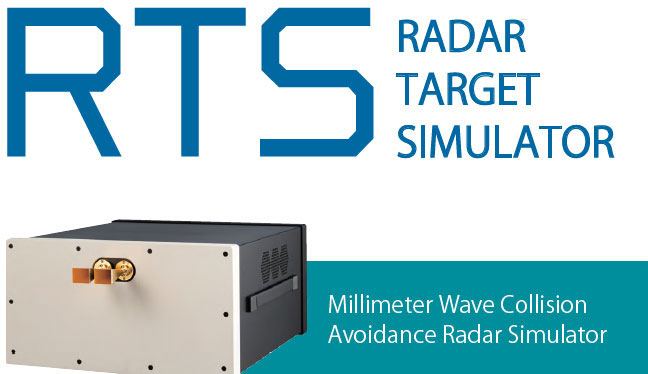

The Microwave Factory Radar Target Simulator (RTS) enables you to evaluatee the perfromance of millimeter wave avoidance radars and systems.
It supports both of 76.5GHz (BW=1GHz) and 79GHz (BW=4GHz) bands.

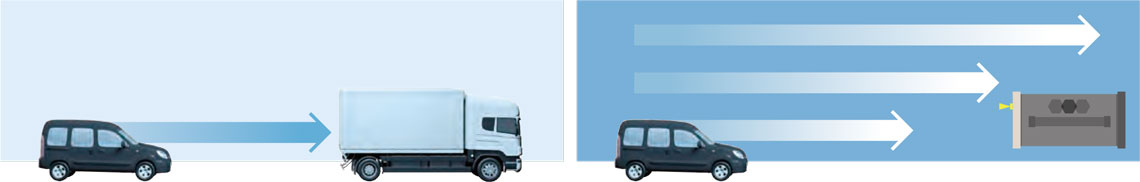

The RTS system simulates a virtual vehicle's Relative Velocity by adjusting the reflected radar signal's doppler shift. It simulates virtual target distance and size through adjustments of the reflected signal's amplitude and return time of arrival using delay and level adjust circuits. Analog delay circuits allow the user to simulate a wide range of clse-in distances.
Radar Cross Section

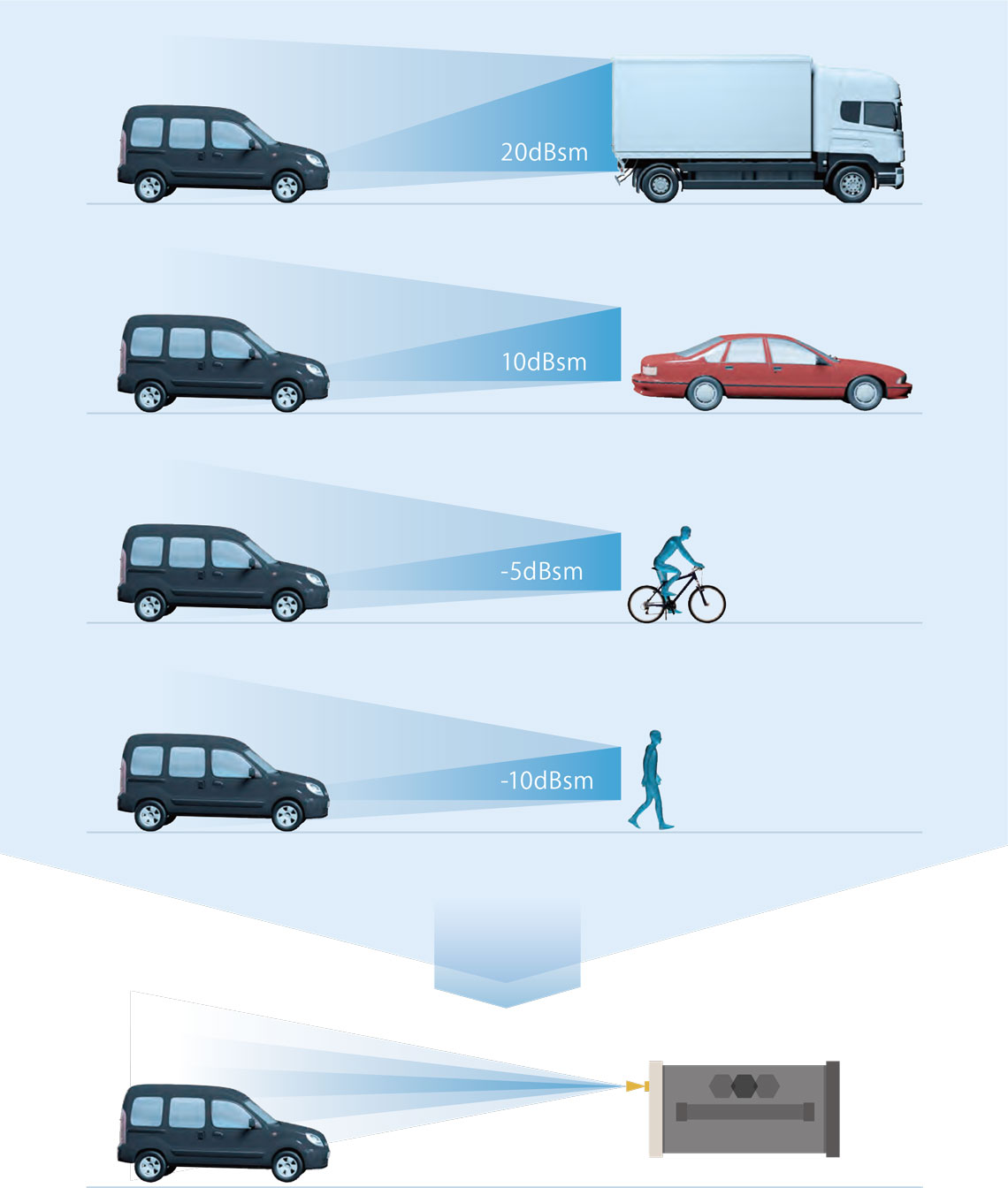

Simulate Different RCS Target
Relative Velocity
Controllable Relative Velocity: Doppler +/- 1000km/h with 0.1km/hr Step Size
Distance

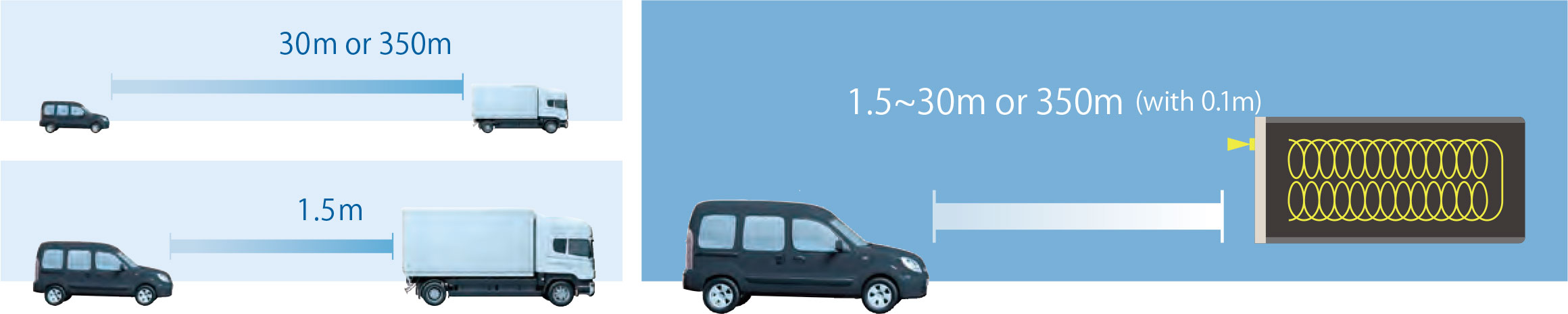

Controllable Measurement Distance from 1.5 to 30m or 350m with a 0.1 Step Size
Bandwidth

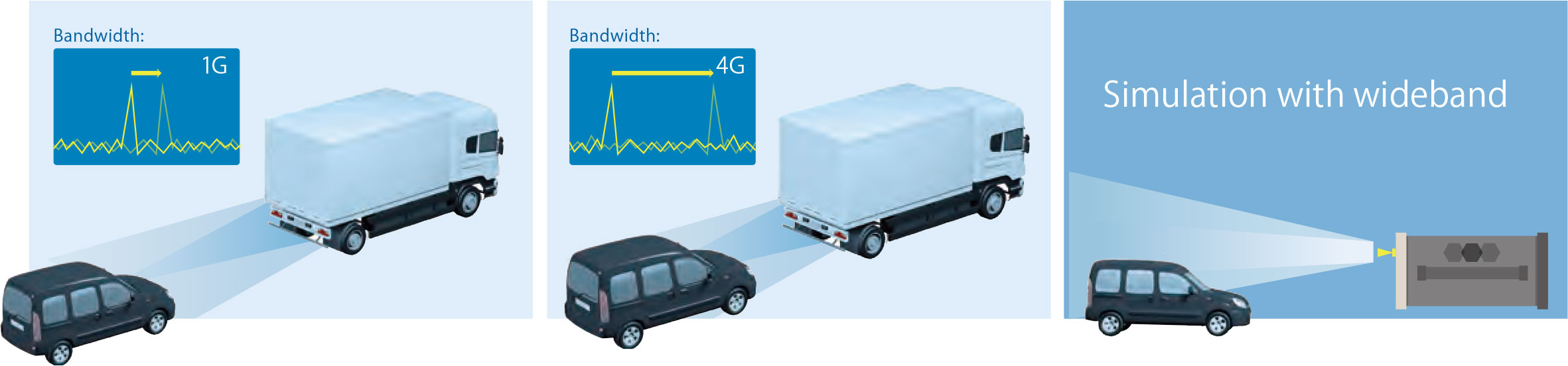

The Wideband Analog Delay Line Enables The Simulation of Close-In Targets
Environment
Enables the Testing and Valldation of Critical Performance in a Safe Lab Environment
Specification
| Parameter | Spec | |
|---|---|---|
| Model | MRT7681-03 | MRT7681-04 |
| Frequency Range |
76~77GHz (1GHz BW) 77~81GHz (4GHz BW) |
|
| Target Moving Speed | -1000 ~ +1000 km/h | |
| Speed step | 0.1 km/h | |
| Delay range | 3.0 ~ 350m(0.1mStep) ※1 | 1.5 ~ 30m(0.1mStep) ※1 |
| Delay accuracy | ≤ ±0.1m | ≤ ±0.1m |
| RF port | Interface | WR12/UG387Umod(IN/OUT) |
| Nominal level at RF port | -30dBm | |
| Operating temperature | +10 ~ +40℃ | |
| Operating humidity | RH35 ~ 85% | |
| Storage temperature | -20 ~ +60℃ | |
| Power supply | AC100-240V 50/60Hz | |
| Dimension | 430(W) * 230(H) * 480(D) (mm) | |
| Weight | ≤ 25kg | |
